ARCHIVE 1 - Old projects

I have recently given the website a clean up with some design changes. This has been on my to-do list for some time, I felt the site menus/navigation needed adjusting and some of the projects needed to be archived, this would make some space for future projects too. I have decided to keep the projects on the website for any students out who want to learn 3D CAD. I use the Lab area as an in development blog but I will now use it as an archive area for any the old projects too

Pipe vise assembly ( click right for engineering drawings and render)

Pipe vises are a plumber's tool, often used to hold pipes in place for threading and cutting. There are two main styles: chain and yoke. The yoke type vise uses a screw to clamp down the pipe, and the chain style uses a chain for securing the pipe.

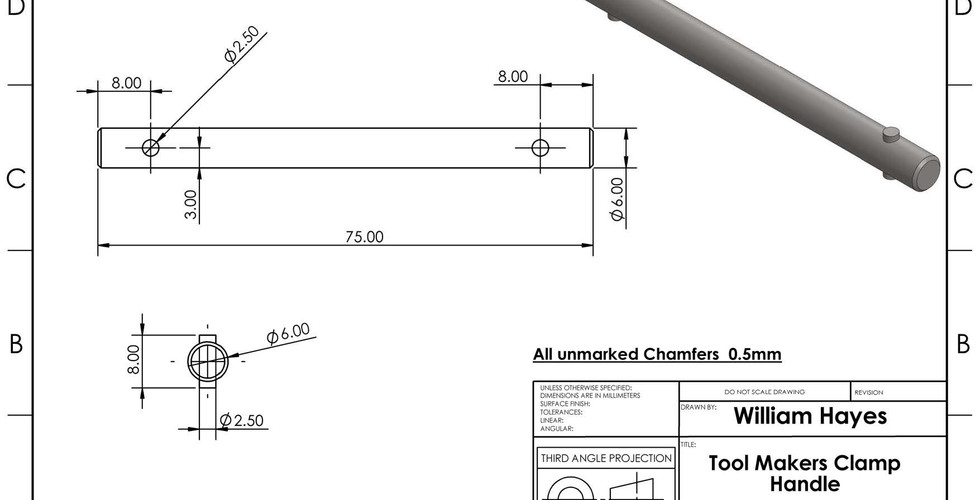

Tool makers clamp assembly ( click right for engineering drawings and render)

A clamp is a fastening device used to hold or secure objects tightly together to prevent movement or separation through the application of inward pressure.

Mini Crankcase ( click right for engineering drawings and render)

A crankcase is the housing for the crankshaft in a reciprocating internal combustion engine. The enclosure forms the largest cavity in the engine and is located below the cylinder(s), which in a multi cylinder engine is usually integrated into one or several cylinder blocks.
